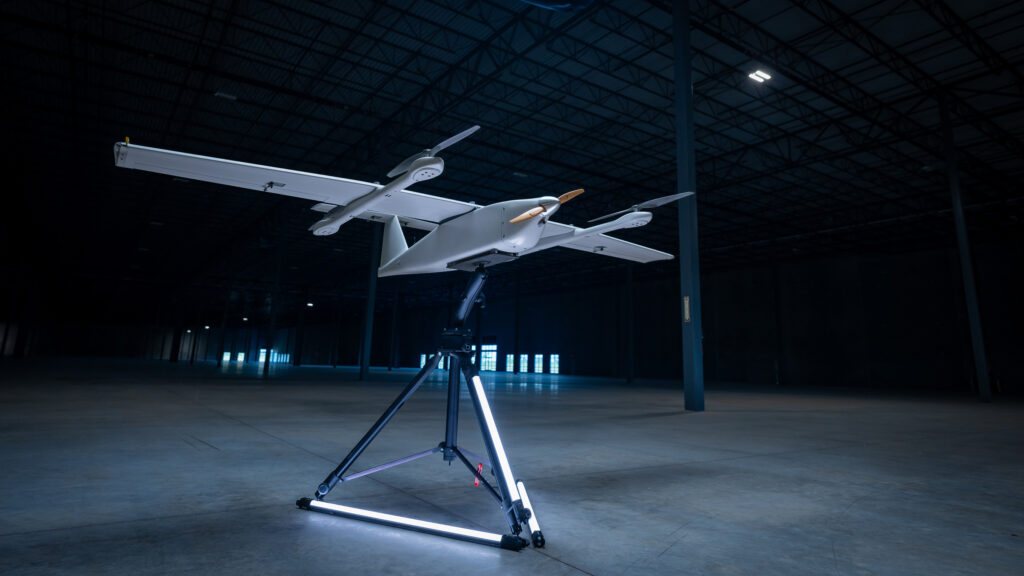

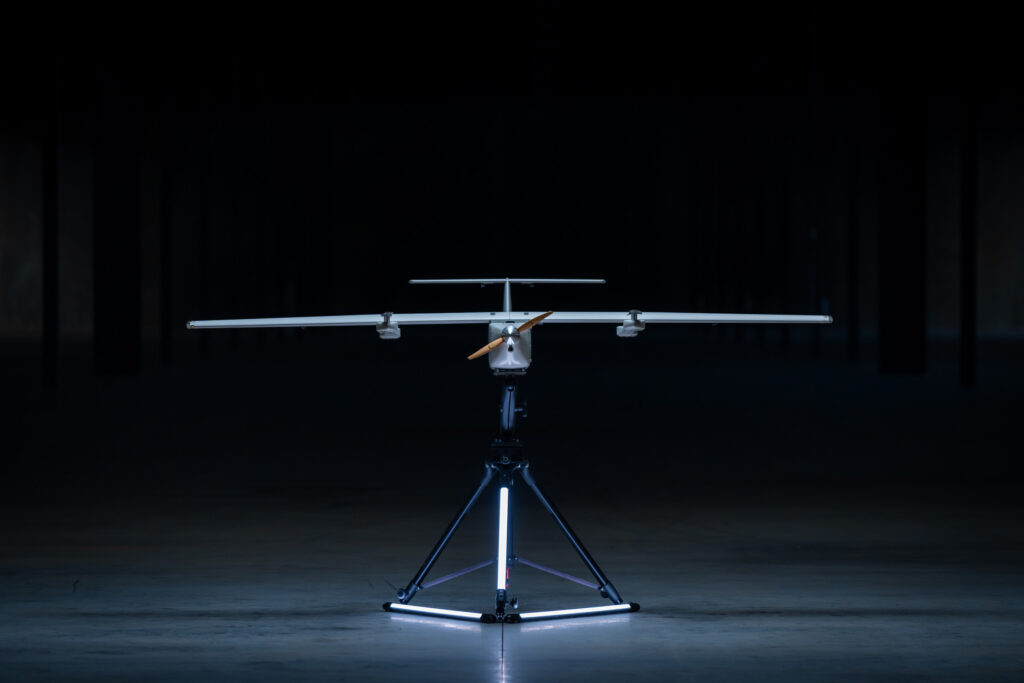

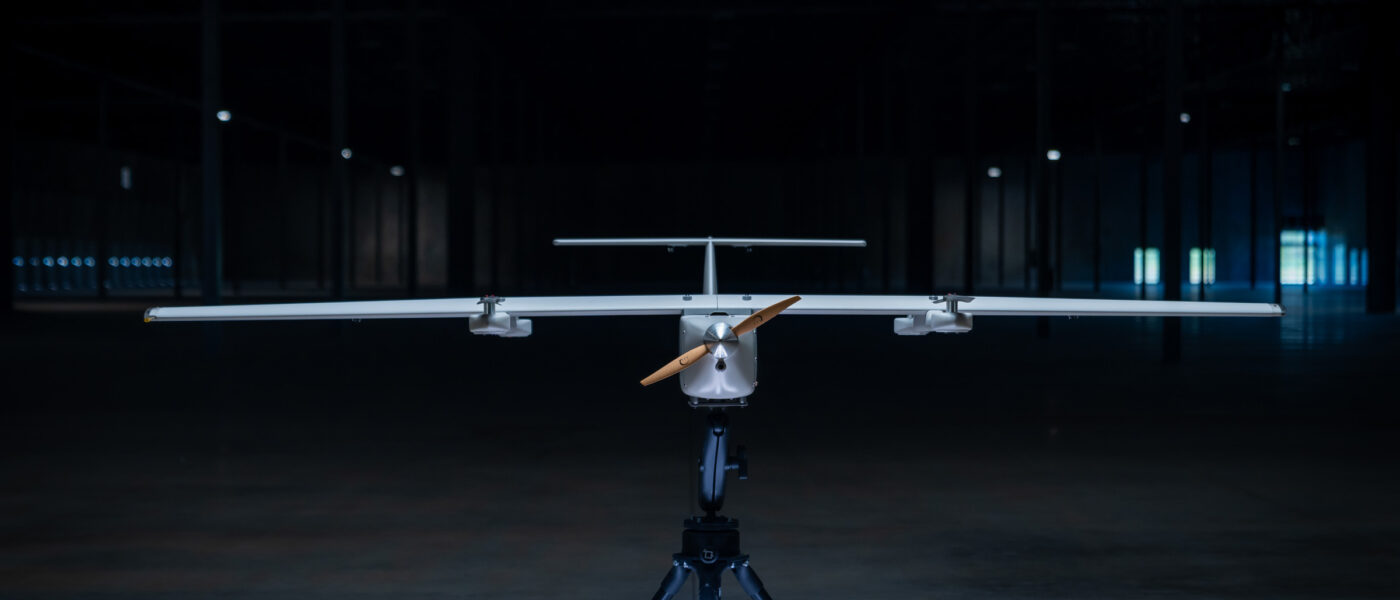

Products: RedWing VTOL
Ready For Takeoff
RedWing VTOL is as nimble as it is capable. Designed for ease of operation and training, this all-electric vehicle requires minimal launch/recovery infrastructure and can be flown by highly mobile operators.
With four motors for Vertical Takeoff and Landing (VTOL) and one motor for forward flight, RedWing VTOL can support payloads up to 5.5 in gimbal, sensors, or additional batteries for longer endurance.
Capabilities
Max Gross Takeoff Weight
55 lbs.
Payload Capacity
Up to 15 lb.
Length/Wingspan
6/10 ft.
Operating Altitude
16,000 ft. DA
Link Range
40 km LOS or more depending on antennas and settings
Radios
RFD 900 X and Mesh MIMO
Endurance
2–3 hours
Cruise Airspeed
35–40 kts
L&R Conversion Altitude
20–100+ ft.
Payload Power
5, 6, 24, and 44V DC
