Products: Outlaw G2

The Workhorse

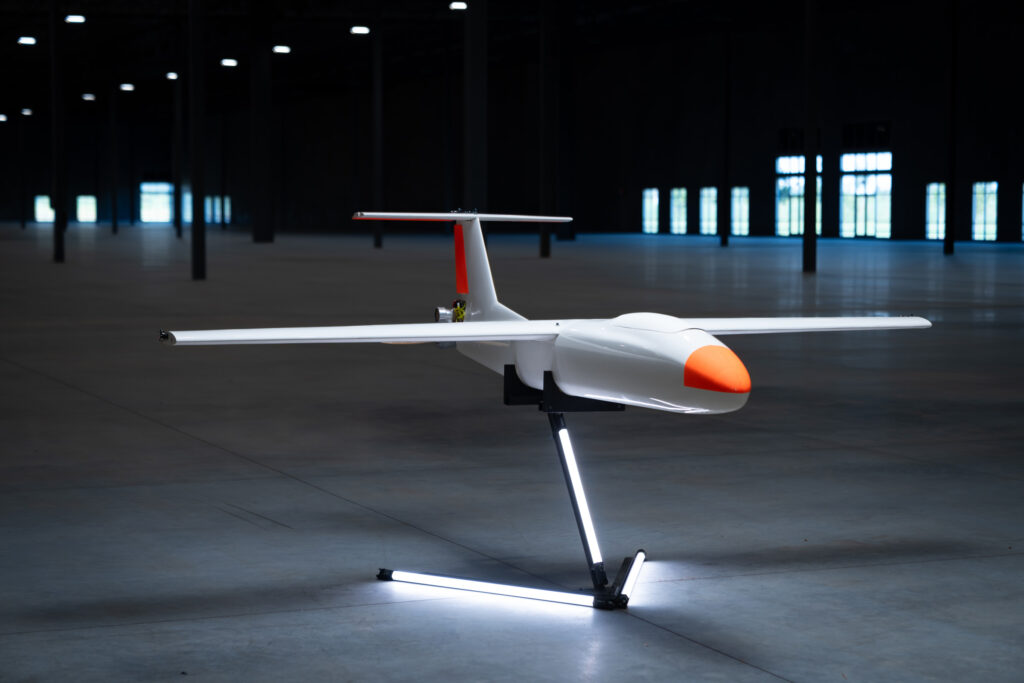

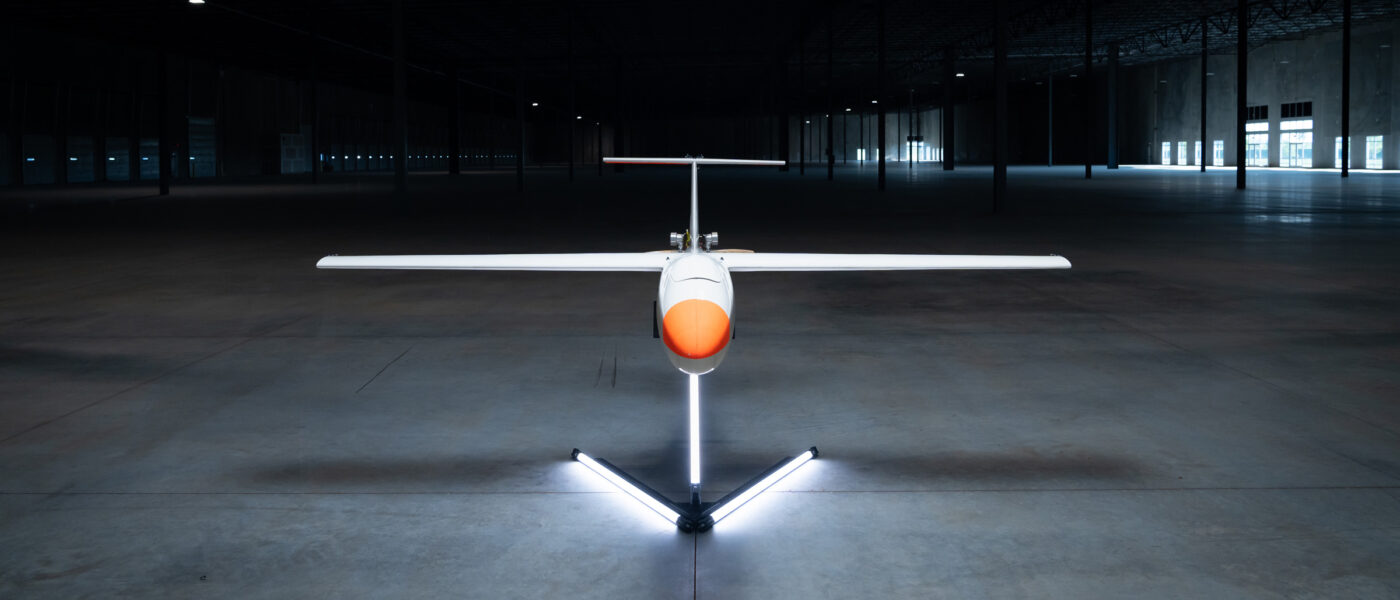

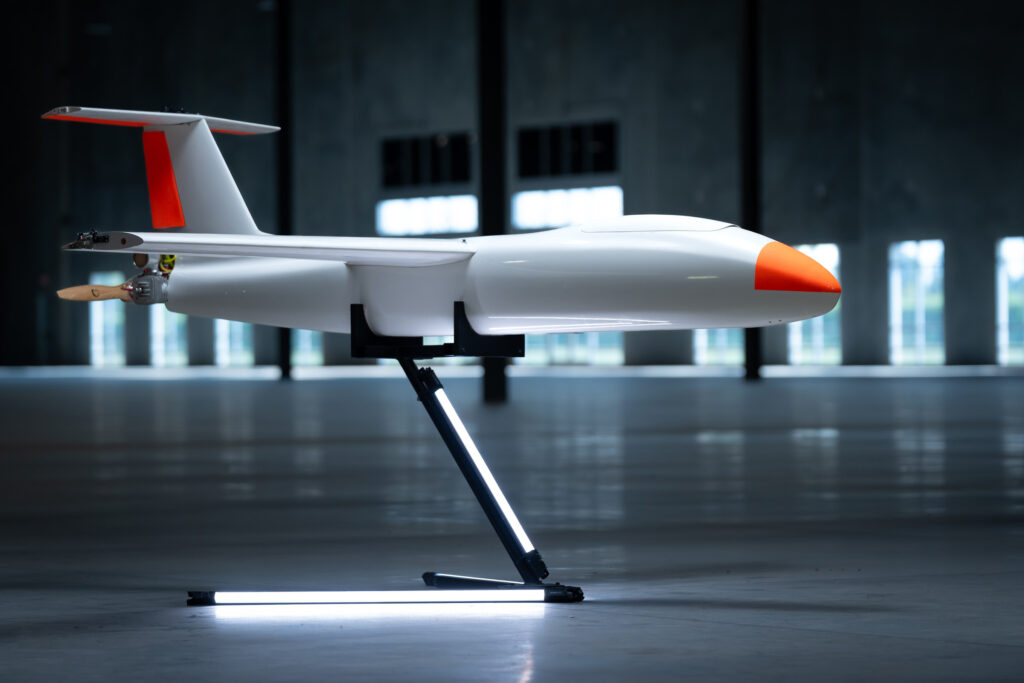

The Outlaw G2, known as MQM-170C, is the successor to the Outlaw G1 and is currently the base UAS platform for US military aerial target contracts.

The versatile G2 can serve as a low-cost, reliable target vehicle with an enhanced visual signature and increased hit area—or an inexpensive payload development platform offering great endurance, payload size, weight, and power.

The Outlaw G2 truly is a workhorse.

Capabilities

Wingspan

Target: 10.8 ft.; UAV: 16.0 ft. (4.9 m)

Length

8.75 ft. (2.7 m)

MTOW

Target: 150 lbs.; UAV: 225 lbs.

Cruise

60–80 KTAS

Max Airspeed

126 KTAS

Ceiling

16,000+ ft.

Max Endurance

8+ hour

Payload Capacity

40–60 lbs. (fuel-load dependent)

Power Plant

150 or 170 cc 2-cylinder, 2 stroke

Payloads

Radar and acoustic scoring; EO/1R gimbaled cameras; R&D Tactical UAV sensors
